The Heart of your Heating SystemRadiant Heat manifolds play a large part in heating systems. It allows for even distribution of supply water from the heat source to distribution lines that circulate hot water through the entire system. They can be used in a variety of applications ranging from radiant, hydronic, or snow-melt applications. The systems are made of adapters, end caps, and fittings that can be customized in a manifold depending on the application. A well-made manifold should distribute water efficiently and economically when the PEX tubing is sized properly. PEX manifolds reduce the need for soldering copper pipes, which prevents flames and chemicals getting into water lines causing problems. A Radiant PEX Manifold set can cover a large area depending on the branch. A 2-branch Radiant PEX Manifold Set can cover a maximum of 800 square feet to an 8-branch that can cover 1800-2200 square foot of floor.Our Radiant Floor Heating Manifold Set comes complete with:(1)- Manifold balance section Body with flow meters(1)- Manifold Isolation section Body with valves(2)- Mounting brackets (2)- Manifold Isolation ball valve with 1″ (inch) NPT Pipe Connection(2)- Stem thermometer on each Manifold Isolation ball valve(2)- Manifold end capsAlso includes 1/2″ Compression connectors-(* quantity varies by branch see below) CM1634-2 4pcsCM1634-3 6pcsCM1634-4 8pcsCM1634-5 10pcsCM1634-6 12pcsCM1634-8 16pcsCM1634-12 24pcsDon’t forget to “Add to Cart” now to start enjoying the durability of our Radiant Heat Manifolds!

10 Branch PEX Manifold Radiant Floor Heating Set Stainless Steel

This PEX Manifold is a stainless steel 10 Loop Radiant Manifold kit Features include body flow meters with adjustable flow rates, isolation ball valve with 1″ NPT thread made of high-quality brass forging, stem thermometers for both isolation ball valves, automatic air purge valves, 1/2″ compression connectors, and mounting brackets. Each port is spaced 2″ apart and has its own turn off valve.

Tech Date:

No. of PEX outlets: 20 (10 on the Supply PEX manifold + 10 on the Return PEX manifold);

For use with PEX tubing sizes: 3/8″, 1/2″ & 5/8″;

Manifold trunk size: 1-1/4″;

Valve inlet connections: 1″ NPT;

Distance between PEX branches (on center): 2″;

Max. flow per individual branch: 1.4 GPM;

Overall width (with valves): 27.5″;

Overall height: 14″;

Overall depth: 4″ (will fit inside a 2×4 frame wall);

Features

Supply PEX manifold with (10) PEX tubing outlets and (10) adjustable flow meters;

Return PEX manifold with (10) PEX tubing outlets and (10) balancing (flow adjustment) valves:

Isolation ball valves with 1″ NPT connections and pressure gauges;

Automatic air vent (air eliminator):Float type air vent is used to automatically purge the air out of the radiant heat system. Air vent cap is included for pressure testing purposes

Drain valves:Both drain valves feature a 3/4″ male garden hose connection for convenient draining/filling of the system. Caps included

Mounting brackets with bolts:Heavy-duty design and custom engineered to offset the manifold from the mounting surface for easy access and installation of PEX tubing

1/2″ PEX Manifold Adapters

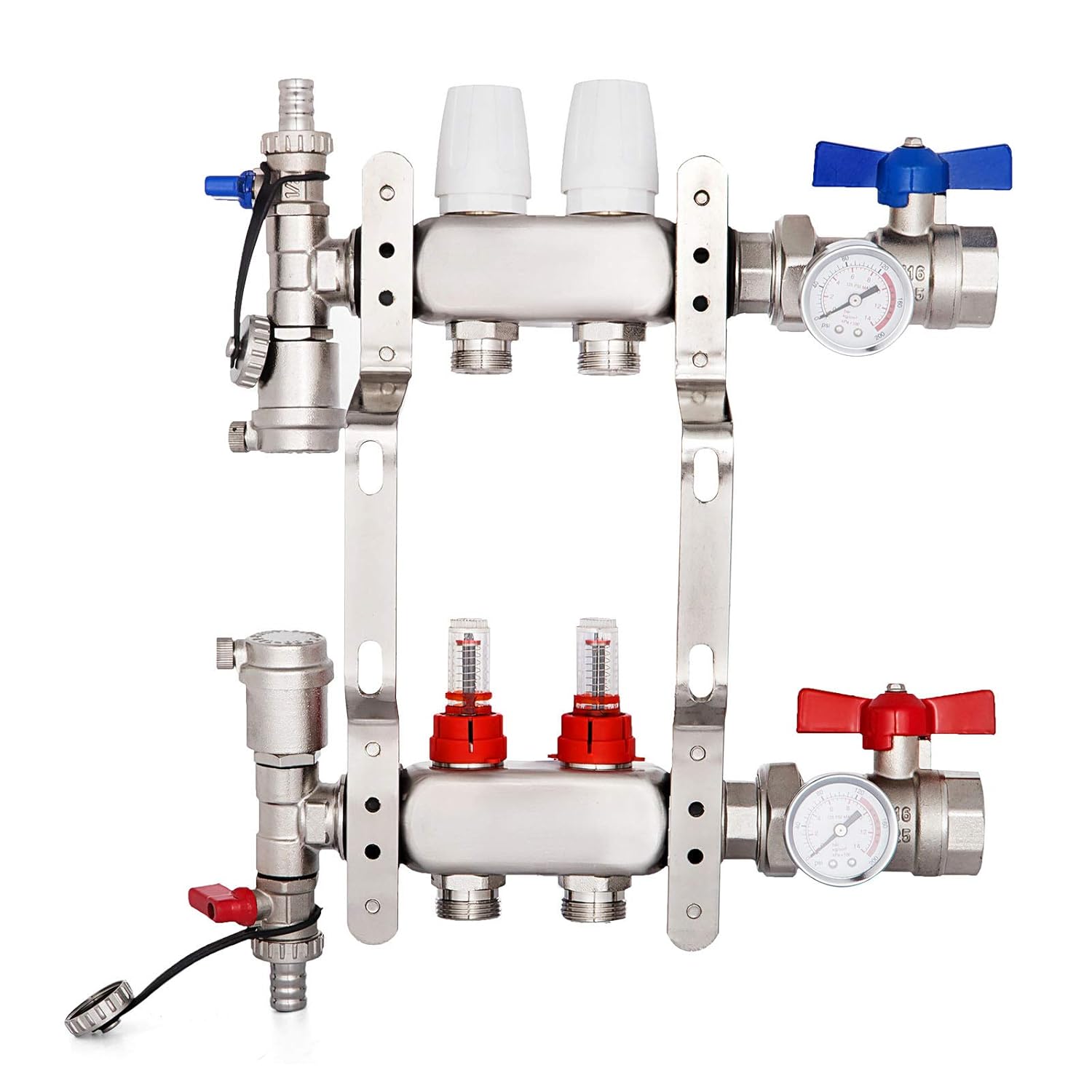

2 Loop PEX 1/2″ Stainless Steel Radiant Floor Heating Manifold Kit

NOTE: This manifold is NOT suitable for potable water applications.

Specifications

Material: Stainless Steel

Temperature Range: 35℃- 65℃(95℉-149℉)

No. of PEX outlets: 2 on the Supply PEX manifold + 2 on the Return PEX manifold

For use with PEX tubing sizes: 1/2″

Manifold trunk size: 1-1/4″

Valve inlet connections: 1″ NPT

Distance between PEX branches (on center): 2″

Max. flow per individual branch: 1.4 GPM

Product Size: 14 X 14″

Devices Included As Following

(1) Supply PEX manifold with 2 PEX tubing outlets and 2 adjustable flow meters: Allow to monitor GPM (Gallons Per Minute) water flow through individual manifold branches.

(2) Return PEX manifold with 2 PEX tubing outlets and 2 balancing (flow adjustment) valves: Balancing valves allow for adjustment of water flow for each branch independently and help to properly balance the radiant heating system.

(3) Isolation ball valves with 1″ NPT connections: Allow for easy service and pressure testing.

(4) Automatic air vents (air eliminators): Float type air vent is used to automatically purge the air out of the radiant heat system. Air vent caps are included for pressure testing purposes.

(5) Drain valves: Both drain valves feature a 3/4″ male garden hose connection for convenient draining/filling of the system. Caps included.

(6) Mounting brackets with bolt: Heavy-duty design and custom engineered to offset the manifold from the mounting surface for easy access and installation of PEX tubing

MOUNTING OPTIONS

Horizontal (as shown on the listing images): Recommended

Upside down (with balancing valves and/or flow meters pointing down): Allowed

Vertical (with balancing valves and flow meters pointing to the side): Allowed

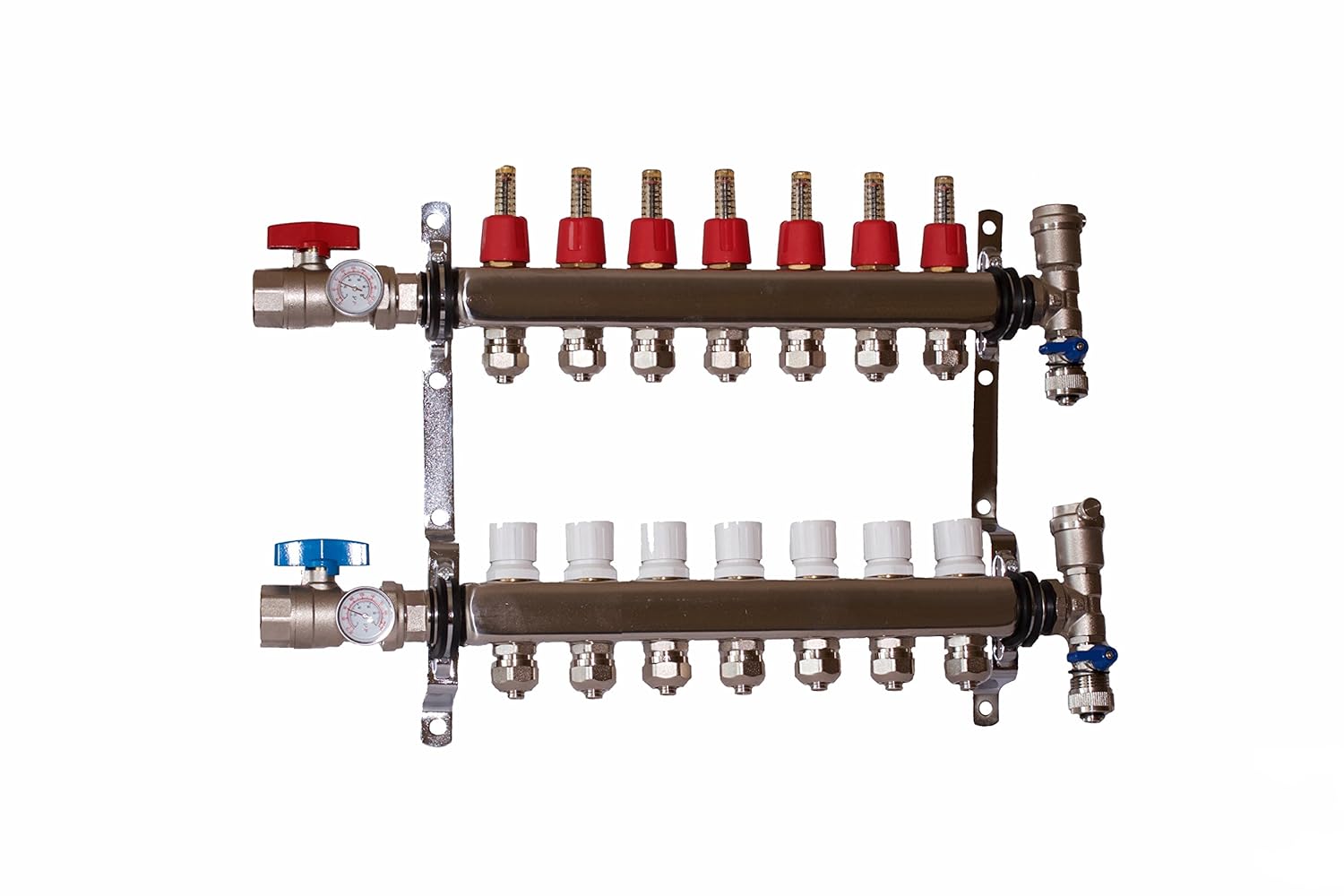

7 – Loop Stainless Steel Radiant Manifold, Made of High Quality Stainless Steel

8 – Loop Stainless Steel Radiant Manifold, Made of High Quality Stainless Steel

Radiant Floor Heating PEX tubing for heat 1/2inch radiant floor heating manifold Set Stainless Steel

Radiant Floor Heating has been designed engineered to offset the manifold from the mounting surface for easy access and installation of PEX tubing.Installs quickly and easily

Specification

No. of PEX outlets: 8 (4 on the Supply PEX manifold + 4 on the Return PEX manifold)
For use with PEX tubing sizes: Inner diameter 1/2 “, outer diameter 5/8”
Manifold trunk size: 1-1/4″
Valve inlet connections: 1″ NPT
Overall width (with valves): 15.5″
Overall height: 14″
Overall depth: 4″ (will fit inside a 2×4 frame wall)
Distance between PEX branches (on center): 2″
Max. flow per individual branch: 1.4 GPM
